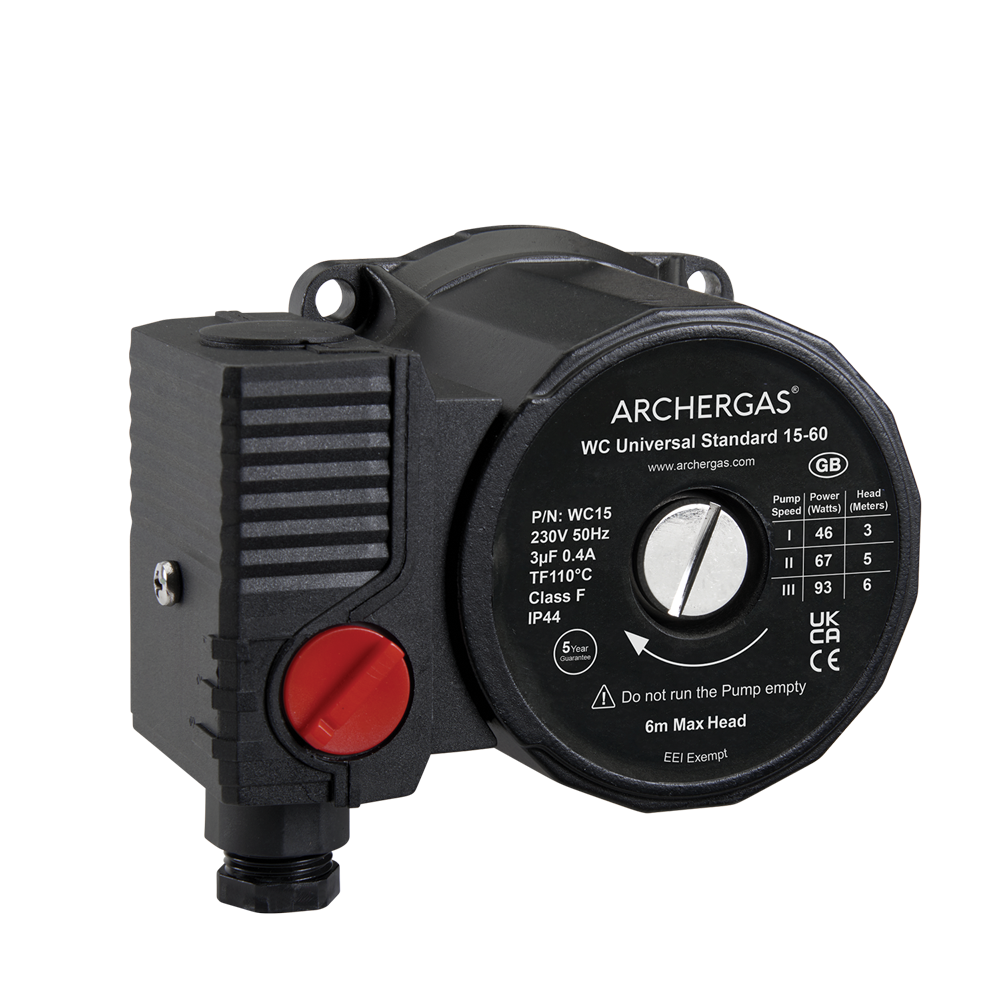

WC Universal Standard 15-60 Pump Head

Part Number: WC15

The Archergas® WC Universal Standard was designed to be a replacement pump head producing a maximum head of 6 meters. Specifically for replacing pump heads in combination boilers. With 3 speed settings it was designed to be ideal for the replacement of existing pump heads in boilers as well as coming with a 5 year guarantee.

Compatibility

Specification

Part Number: WC15

Maximum Head: 6 Meters

Maximum Flow Rate: 65 Litres Per Minute

Maximum System Pressure: 10 Bar

CE/UKCA Approved: Yes

Speed Control: 3 Fixed Speeds

Protection Class: IP44

Temperature Class: TF110ºC

Insulation Class: F

Material: Cast Iron

Colour: Jet Black

Weight: 1.6kg

*The benchmark for the most efficient circulators is EEI ≤ 0.20
*This replacement integrated circulator was placed on the market before 1/1/2022
